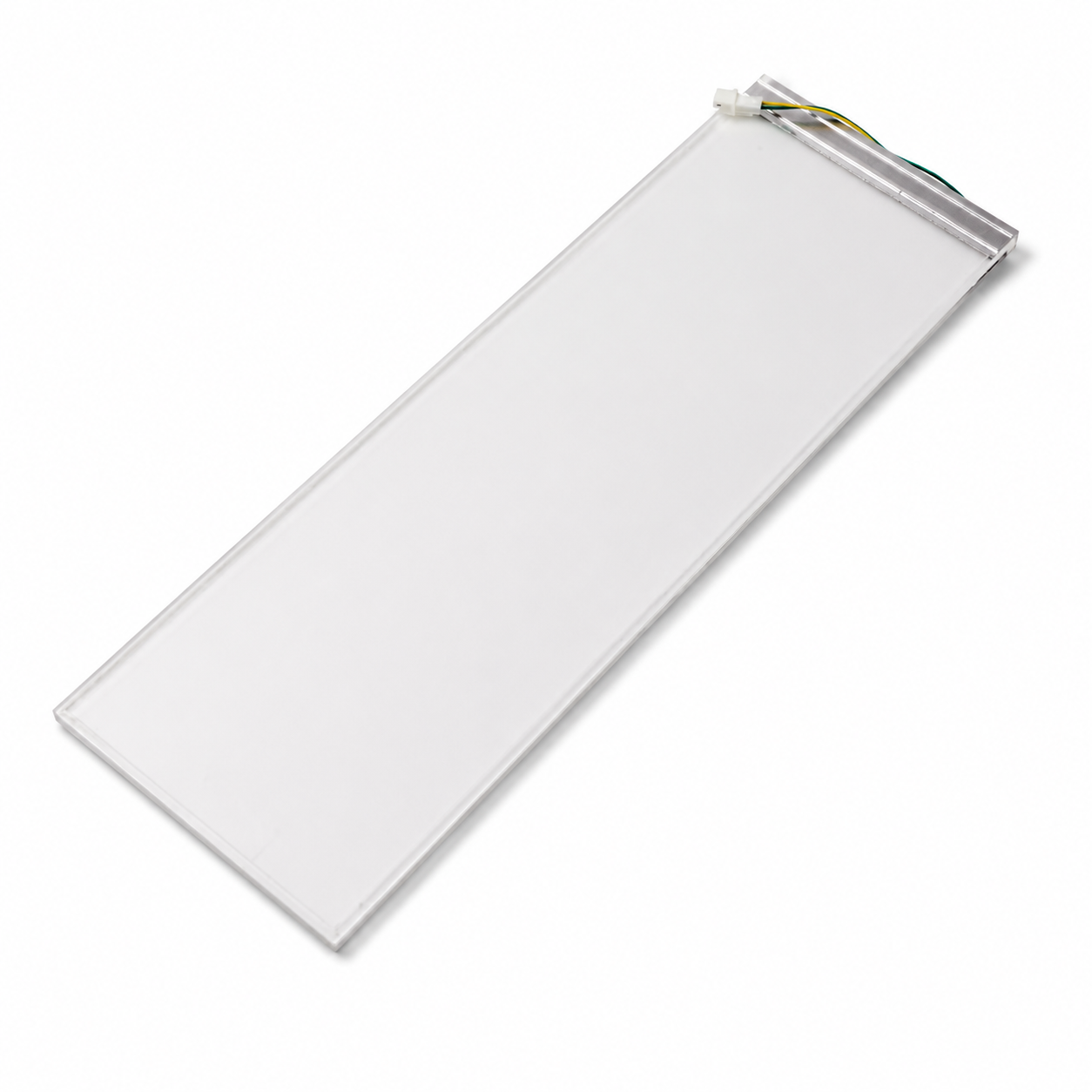

W11048980 Refrigerator LED Light Assembly – Compatible with Whirlpool & KitchenAid – Replaces W11455230, W11470191, W11032355 – OEM Quality, 10-Year Life

Why Upgrade Your Refrigerator Lighting?

If your refrigerator interior has grown dim, flickers, or has stopped working entirely, chances are the LED light assembly needs to be replaced. The W11048980 is a premium OEM-quality LED light assembly designed to restore bright, even illumination to your Whirlpool or KitchenAid bottom-mount refrigerator.

Built with a polished aluminum housing and a clear acrylic lens, this light delivers over 400 lumens of cool, energy-efficient LED light — bright enough to illuminate every shelf and drawer. It consumes 5% less energy than standard refrigerator lights while providing 15% more brightness.

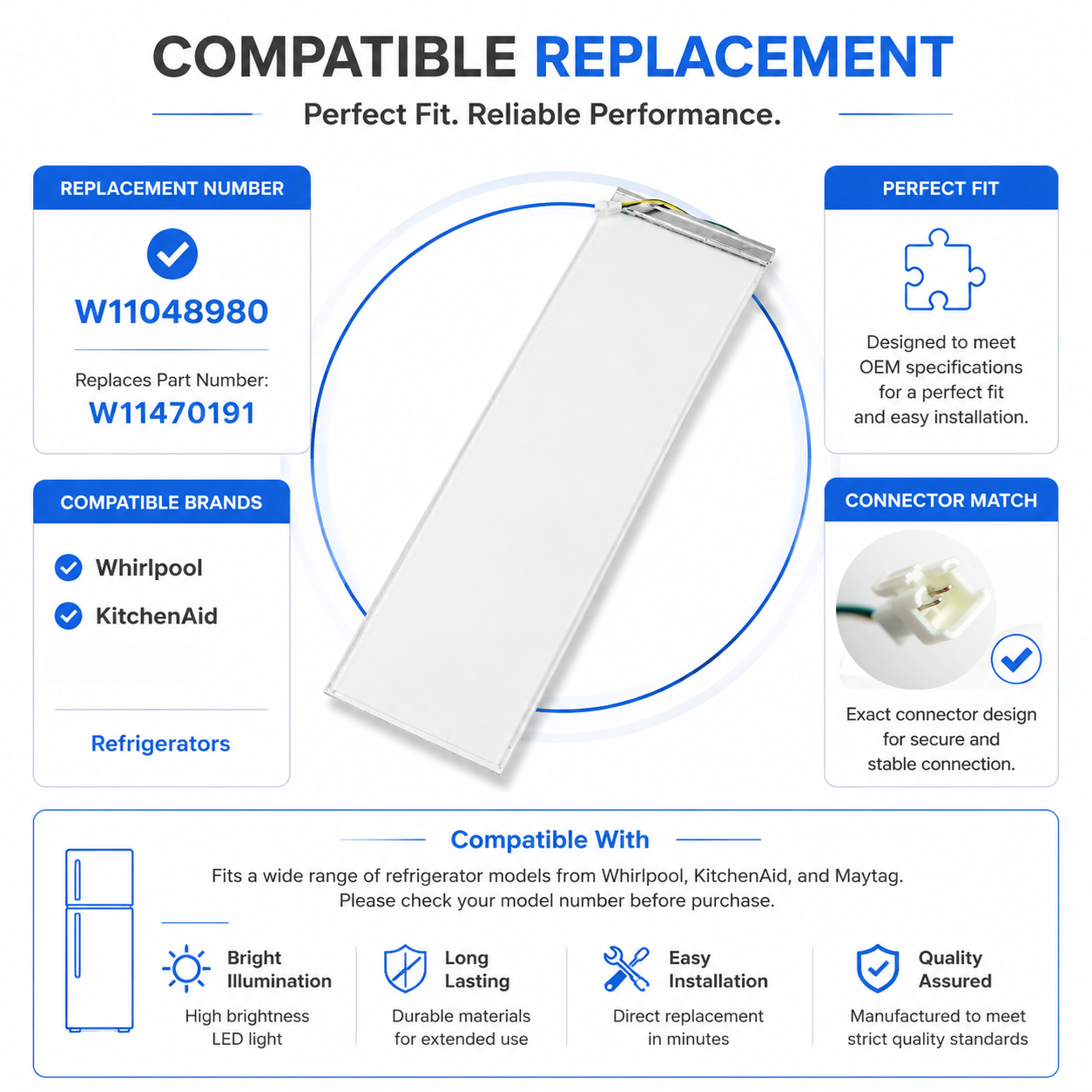

Compatibility

⚠ This part fits bottom-mount refrigerators only. Please verify your model number before ordering.

Replaces OEM Part Numbers

W11455230 • W11470191 • W11032355 • W11032353

Key Features

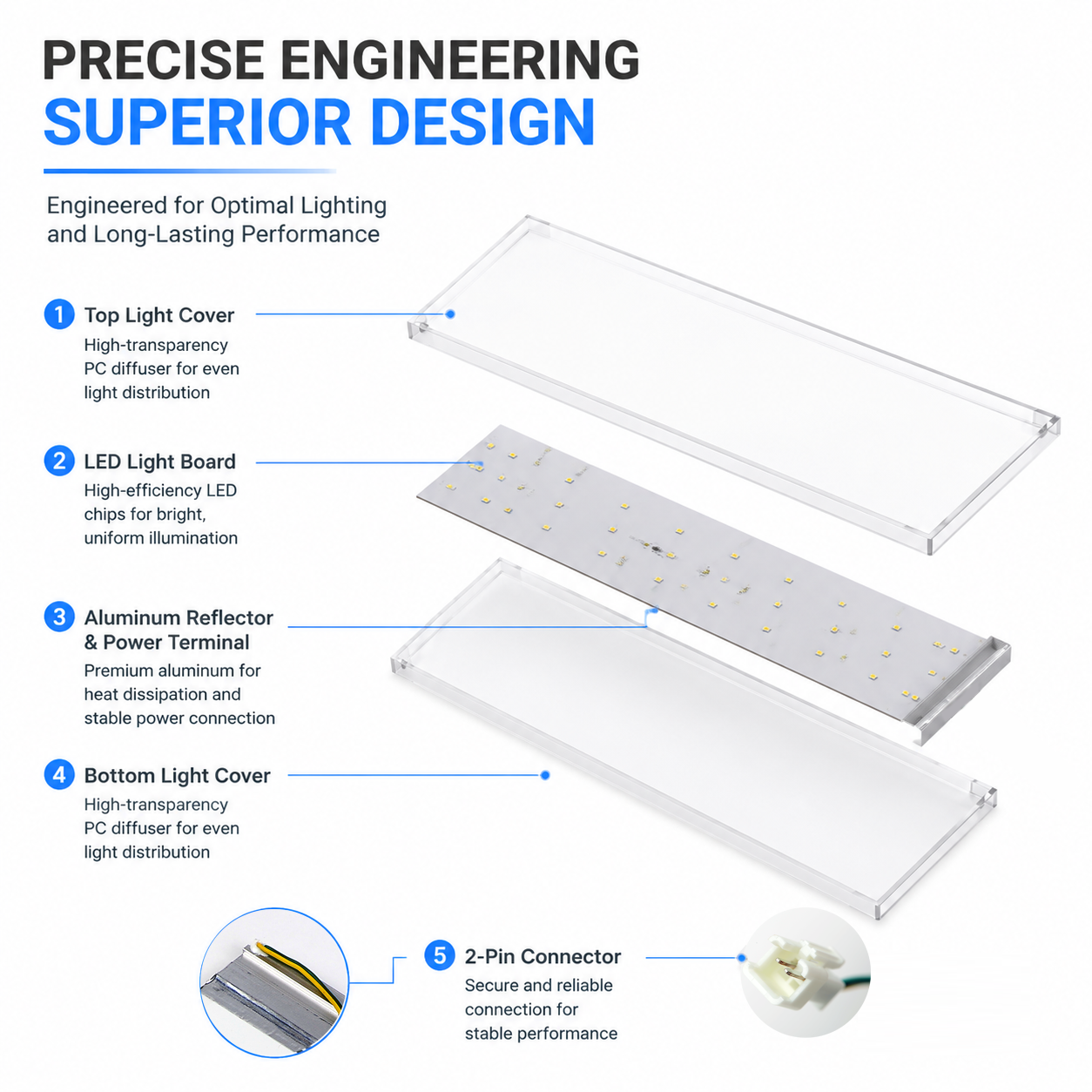

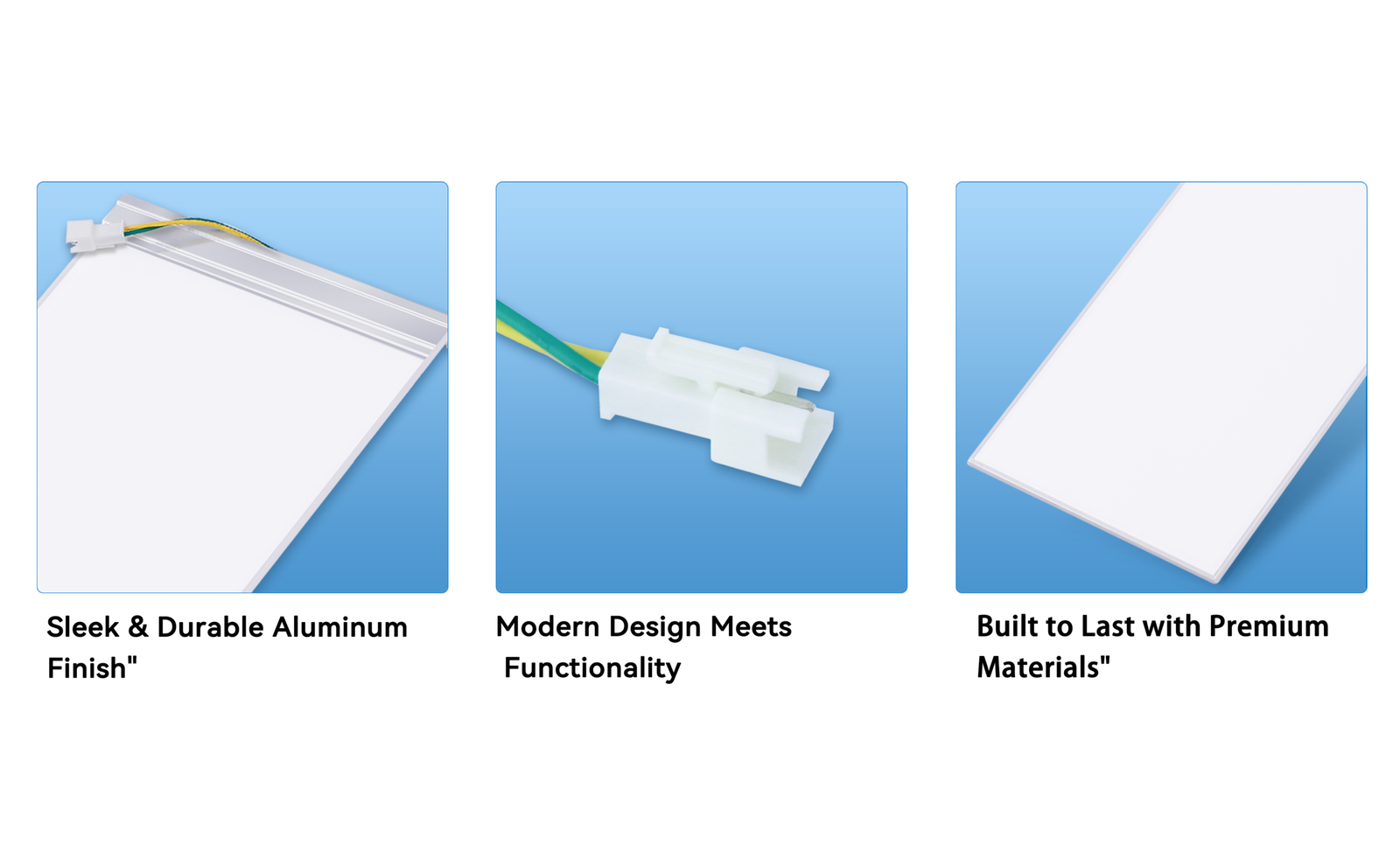

• Premium Build: Acrylic lens with polished aluminum frame — durable, corrosion-resistant, and built to last
• Energy Efficient: LED technology uses 5% less energy than standard bulbs while delivering 15% brighter light
• Long Service Life: Rated for 25,000+ hours of use — that’s over 10 years in a typical refrigerator
• Easy DIY Installation: No electrician needed. Most homeowners complete the swap in under 20 minutes with basic hand tools
• 10-Year Manufacturer Warranty: Backed by TSIGUOQURU’s quality guarantee

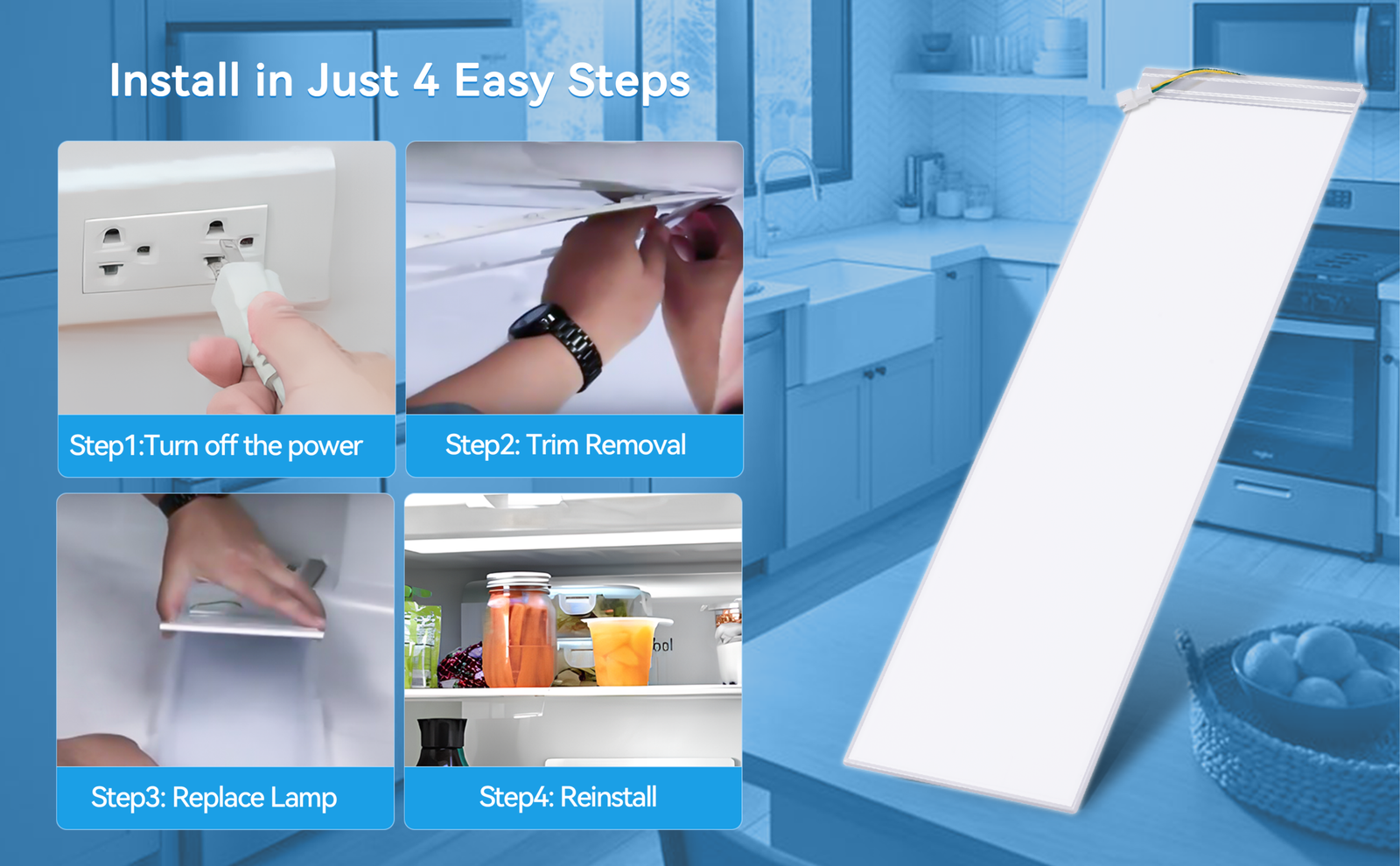

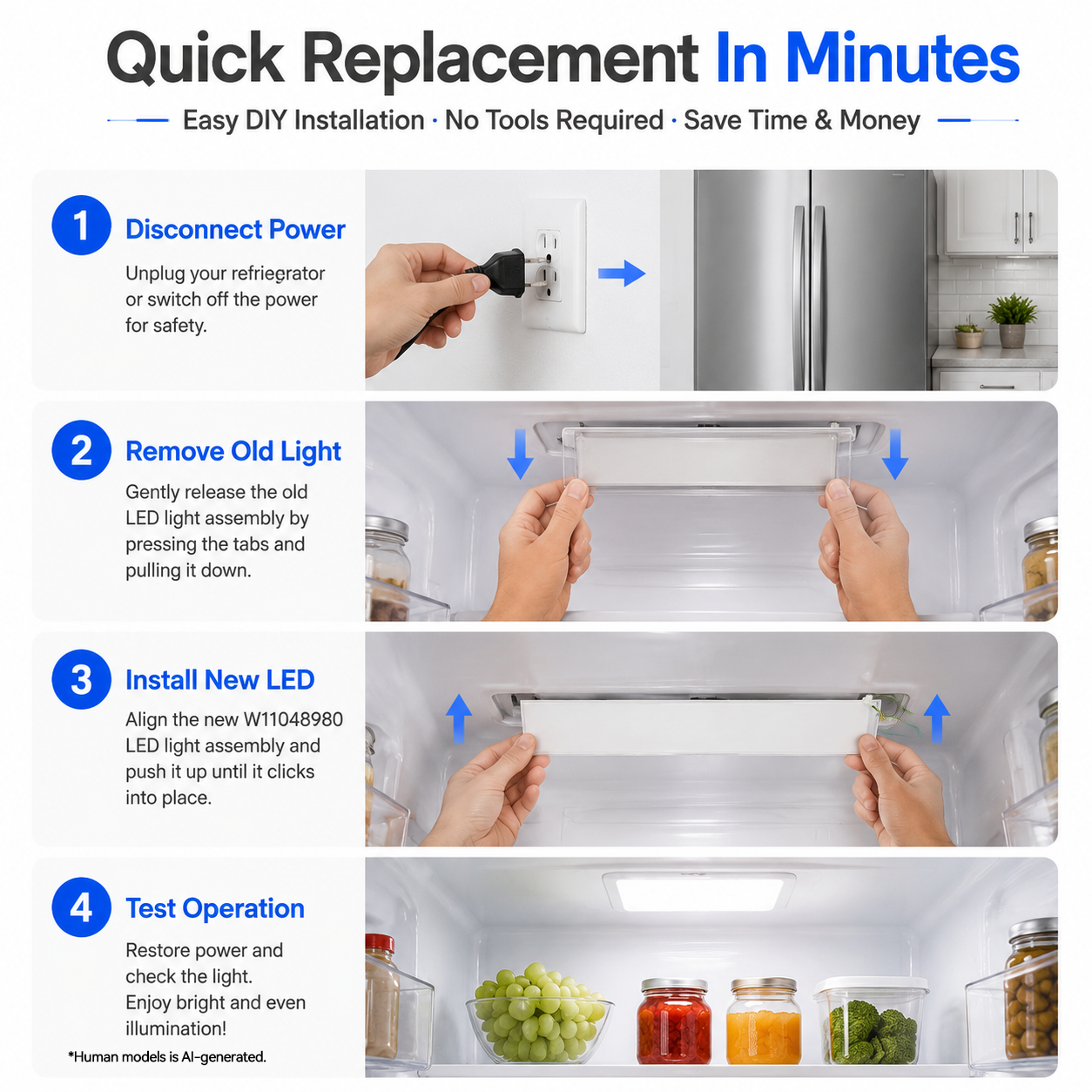

Installation Tips

1. Safety first: Unplug your refrigerator and remove any perishable food that may spoil during the installation.
2. Locate the light: The LED assembly is flush-mounted inside the fridge cabinet. You may need to remove the upper shelf to access the retaining snaps.
3. Remove the old unit: Gently pry out the clear plastic cover using a thin flathead screwdriver or plastic trim tool. The cover is secured by two snaps — press them inward and pull the cover forward.
4. Swap the LED assembly: The LED module is clipped inside the clear cover. Release the retaining snap, disconnect the wiring plug, and connect the new W11048980 assembly.
5. Reassemble: Snap the clear cover back into place, replace the shelf, restore power, and enjoy your bright, refreshed refrigerator.

💡 Tip: Wear work gloves to protect your hands from sharp edges inside the cabinet.

Frequently Asked Questions

Q: How long does this LED light last?
A: The W11048980 is rated for 25,000+ hours of continuous use — that’s over 10 years of normal refrigerator operation.

Q: Is it energy efficient?
A: Yes. This LED assembly uses 5% less energy than standard fridge lights while delivering 15% higher brightness.

Q: How bright is it?
A: It provides over 400 lumens — enough to brightly illuminate even a full-size refrigerator interior.

Q: Does this include the plastic trim ring?
A: No. This listing is for the LED light assembly itself (part W11455230 / W11048980), not the plastic surround ring.

Q: Will this fit my refrigerator?
A: This part is designed for Whirlpool WRQA59CNKZ and KitchenAid KRQC506MPS00 bottom-mount models. If your model is not listed, please contact us with your model number before ordering.

What’s Included

• 1× W11048980 Refrigerator LED Light Assembly
• 1× Installation Manual

Need Help?

Not sure if this part fits your refrigerator? Have a question about installation? We’re here to help. Contact our support team and we’ll get back to you within 24 hours.
